PRC Wander Masks

Next: SSU Wander Masks Up: Wander Masks for individual Previous: Wander Masks for individual

The wander produced by a primary reference clock should [6] have the following limits:

These translate into the masks shown in figures 2.7 and 2.8.

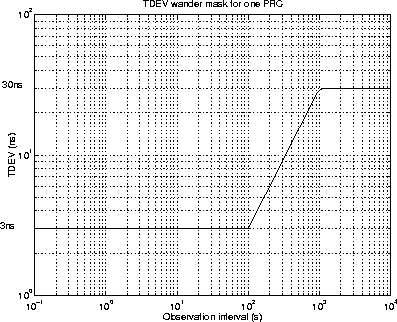

**Figure 2.7:** PRC TDEV wander mask
$\begin{figure} \centerline{ \epsfig {file=eps/prctdevmask.eps, width=10cm} }\end{figure}$

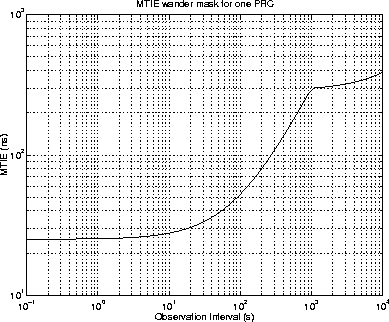

**Figure 2.8:** PRC MTIE wander mask
$\begin{figure} \centerline{ \epsfig {file=eps/prcmtiemask.eps, width=10cm} }\end{figure}$

Mark J Ivens
11/13/1997
