SSU Wander Masks

Next: SEC Wander Masks Up: Wander Masks for individual Previous: PRC Wander Masks

The wander produced by a Synchronisation Supply Unit in locked mode should [4] satisfy the following bounds.

The above result in the masks shown in figures 2.9 and 2.10.

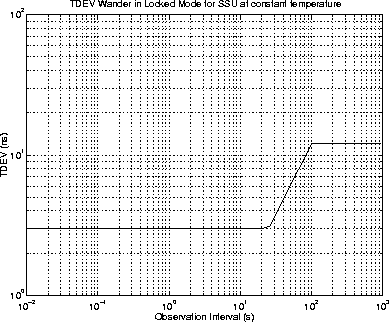

**Figure 2.9:** SSU TDEV wander mask
$\begin{figure} \centerline{ \epsfig {file=eps/ssutdevmask.eps, width=10cm} }\end{figure}$

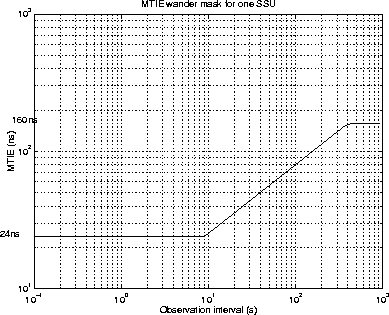

**Figure 2.10:** SSU MTIE wander mask
$\begin{figure} \centerline{ \epsfig {file=eps/ssumtiemask.eps, width=10cm} }\end{figure}$

Mark J Ivens
11/13/1997
