Wander Limits at PRC Outputs

The above result in the masks shown in figures 2.13 and 2.14.

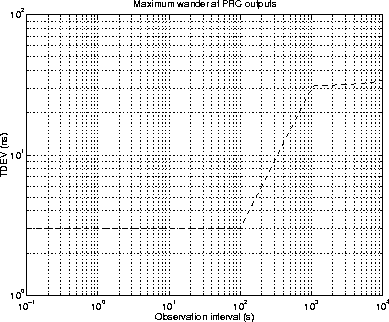

Figure 2.13:   Maximum wander at PRC outputs in TDEV
\begin{figure} \centerline{ \epsfig {file=eps/prcreftdevmask.eps, width=10cm} }\end{figure}

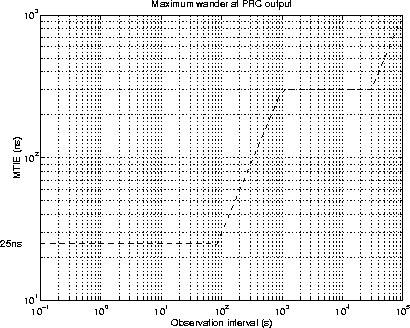

Figure 2.14:   Maximum wander at PRC outputs in MTIE
\begin{figure} \centerline{ \epsfig {file=eps/prcrefmtiemask.eps, width=10cm} }\end{figure}
