Wander Limits at SSU Outputs

The above result in the masks shown in figures 2.15 and 2.16.

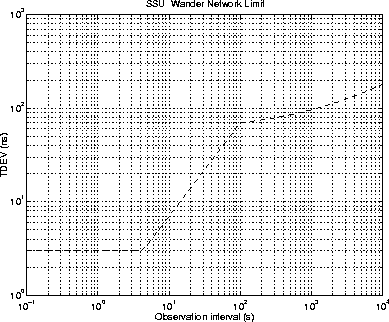

Figure 2.15:   Maximum wander at SSU outputs in TDEV
\begin{figure} \centerline{ \epsfig {file=eps/ssureftdevmask.eps, width=10cm} }\end{figure}

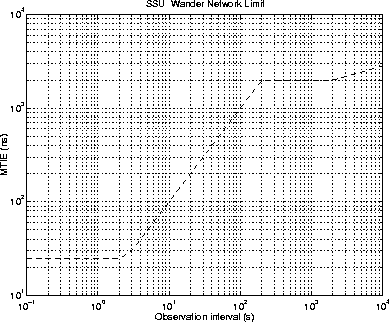

Figure 2.16:   Maximum wander at SSU outputs in MTIE
\begin{figure} \centerline{ \epsfig {file=eps/ssurefmtiemask.eps, width=10cm} }\end{figure}
