Intra-node Distribution Architecture

The following section describes the architecture of the network responsible for intra-node distribution of synchronisation signals. For nodes containing Synchronisation Supply Units, the architecture is depicted in figure 2.2.

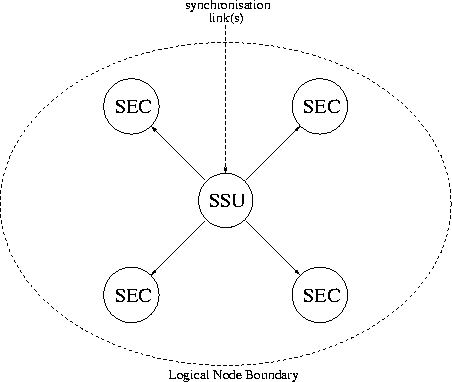

**Figure:** Synchronisation network architecture for intra-node distribution after [2]
$\begin{figure} \centerline{ \epsfig {file=eps/arch2.eps, width=10cm} }\end{figure}$

It can be seen from the diagram that the network has a logical star topology. Within a node, all the lower level clocks derive their synchronisation form the signal provided via the highest hierarchical clock level.
